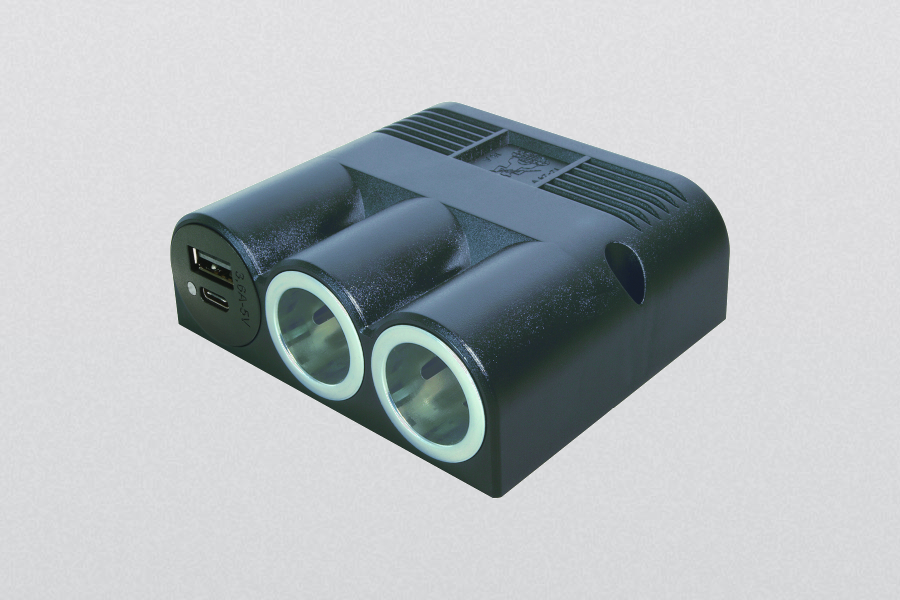

Surface Mounted Triple Socket with 1 Power Double USB-C/A Socket and 2 Power Sockets
Power Double USB-C/A socket 12-24 V DC / 3.6 A with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Input voltage 8-34 Volt , E1 certificate,
Current consumption < 1 mA.
Overload protection, overtemperature protection, reverse polarity protection, short-curcuit protection, overvoltage protection at short voltage peaks.
Output current max. 3.6 A
Two power sockets 12-24 volt, inner-Ø 21 mm, fitting for universal plugs.
Max. load 20 A based on a supply cable cross-section of 2.5 mm2, max. load 16 A based on a supply cable cross-section of 1.5 mm2.
Fastening with enclosed screws. Pre-assembled cable connection.
Dimensions L x W x H: 85 x 95 x 33 mm
