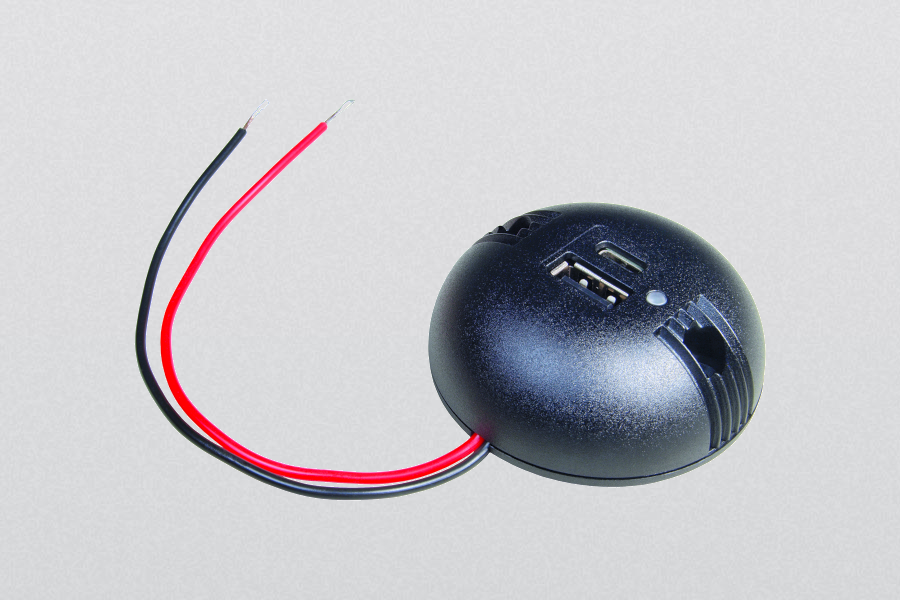

Round Power Double USB-C/A Surface Mounted Socket

12-24 V DC / 5 V DC with integrated power voltage converter and blue LED. For charging and operating electronical devices that are suitable for charging by 5 Volt USB.

Fastening by enclosed screws. Pre-assembled cable connection approx. 15 cm.

Input voltage 8-34 Volt ,
E1 certificate, Current consumption < 1 mA.
1 x USB-C + 1 x USB-A
Protection against overload, overtemperature, reverse polarity, short curcuit, overvoltage protection at short voltage peaks.
Cable connection 15 cm,
Cable cross section 0.5 mm2,
Output current max. 3 A (Port C) / 2.5 A (Port A) (25 watt)
Dimensions: H 21.5 x Ø 59 mm


Back to overview

Description Art.-No.
12-24 V 67347000 IV
