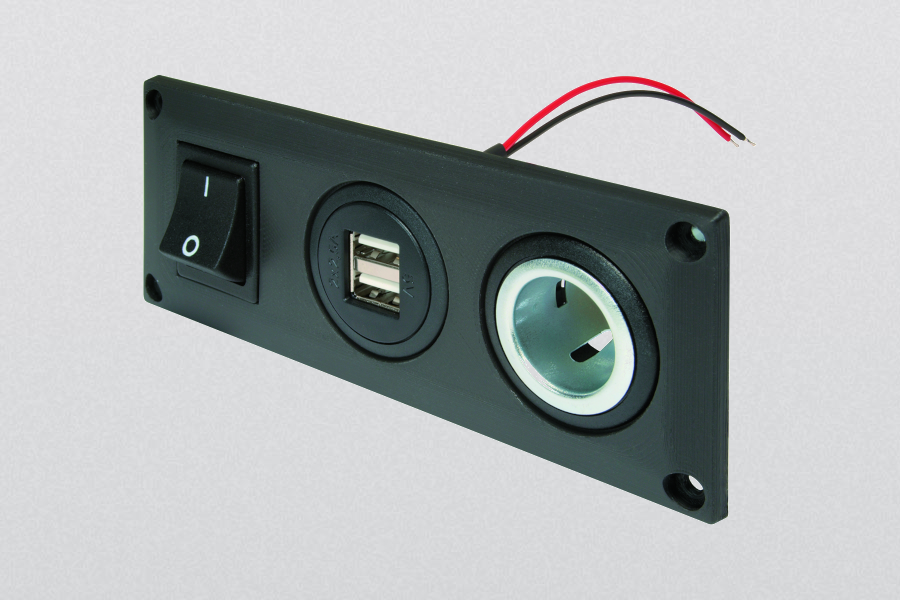

Built-In Socket including 1 Power Double USB-A Socket, switchable and 1 Power Socket

Fitted with

1 Power Double USB-A socket, 12-24 V DC, output 5 V with integrated voltage converter, max. 5 A.
Switchable via on/off switch.
Input 8-34 V DC, E1-approval, including protection against: overload, reverse polarity, overtemperature. Current consumption ≤ 3 mA (if enabled).

1 Power Socket 12-24 V, inner Ø of socket 21mm, fitting for universal plugs.

Designed to operate electrical devices in cars, boats and mobile homes. Current-carrying capacity: 20 A based on a cable cross section of 2.5 mm², 16 A based on a cable cross section of 1.5 mm². Pre-assembled cable connection. Fastening with enclosed screws.

Dimensions LxWxH: 144 x 56 x 7 mm. Depth 55 mm.
